Match the feeder to the exact spool dimensions and filament. The closed Bambu AMS rolls spools on their outer rims; AMS Lite grips the center hub. Bambu lists generic TPU and TPU 95A as unsupported in both systems.
This guide answers how a spool fits AMS or AMS Lite, including cardboard spools, and what hardware the material needs; the feeder compatibility lookup answers whether one filament line is supported in a feeder.
- Closed Bambu AMS: Bambu lists 50–68 mm spool width and 197–202 mm outer diameter. Follow the manual's cardboard-spool guidance.
- Bambu AMS Lite: Bambu lists 40–68 mm width and 53–58 mm inner hub diameter. Measure the spool rather than assuming the brand or outer diameter is enough.
- No-buy rule: Measure before replacing or respooling. If a spool is outside the published limits, use a compatible spool or adapter supported by the feeder instructions.
Buying through our Amazon links costs you nothing extra and helps keep FilamentSetup free. As an Amazon Associate we earn from qualifying purchases. Commission policy.
Shortlist: spools matched to specific feeder paths
Best plastic-spool starting point for closed AMS rollers

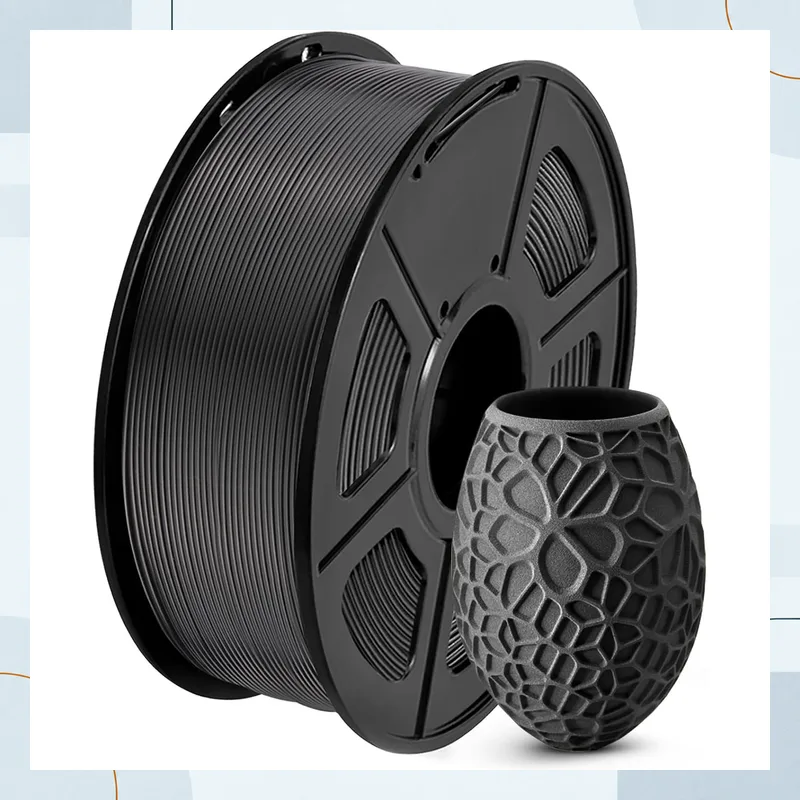

SUNLU PLA, 1.75 mm, 1 kg
Skip this if: the exact US child changes brand, model or line, material or capacity, diameter or weight, color, or generation.
View on Amazon
Best cardboard-spool starting point for AMS Lite and external holders
OVERTURE High Speed PLA, 1.75 mm, 1 kg
Skip this if: the exact US child changes brand, model or line, material or capacity, diameter or weight, color, or generation.
View on Amazon
Best external bypass spool for direct-drive flex prints
OVERTURE TPU 95A, 1.75 mm, 1 kg
Skip this if: the exact US child changes brand, model or line, material or capacity, diameter or weight, color, or generation.
View on Amazon
Best enclosed-chamber engineering spool
Polymaker PolyLite ASA, 1.75 mm, 1 kg
Skip this if: the exact US child changes brand, model or line, material or capacity, diameter or weight, color, or generation.
View on AmazonSituation chooser: hardware and spool compatibility
| Hardware system | Published spool limits | Spool guidance | Material notes |
|---|---|---|---|
| Closed Bambu AMS | 50–68 mm wide; 197–202 mm outer diameter | Runs on outer rims. Follow Bambu's cardboard spool adapter guidance and inspect the assembled spool. | Bambu lists generic TPU and TPU 95A as unsupported. Use a supported external feed path for ordinary TPU 95A. |
| Bambu AMS Lite | 40–68 mm wide; 53–58 mm inner hub diameter | Grips the center hub. Check fit against the exact spool and current manual. | Bambu lists generic TPU and TPU 95A as unsupported; consult its current material guidance. |
| External rear or top spool holder | Use the printer and holder's published limits | Check arm diameter, spool width, and clearance. | May provide a suitable path for TPU 95A when the printer maker supports it. |
| Long Bowden path | Depends on the spool mount and printer | Confirm the path has no snag points or excess drag. | Flexible filament can be more sensitive to a long, restrictive path; use the printer and filament maker's recommendations. |
| Open-frame printer | Depends on the external spool holder | Check physical spool clearance. | ASA is generally easier to print with draft control and an enclosure. Plan ventilation for the material. |
Constraint deep dives
Closed AMS and AMS Lite grip the spool differently
The closed AMS rolls the spool on its outer rim, while AMS Lite grips the center hub. Their published dimensions describe different contact points. Follow the current Bambu AMS specifications and AMS Lite specifications, then measure the exact spool. Bambu provides adapter guidance for some cardboard spools; a spool's material or brand alone does not establish fit.
Why TPU 95A needs a compatible feed path
Flexible filament can buckle or snag in a feed system that is not designed for it. Bambu lists generic TPU and TPU 95A as unsupported in its AMS and AMS Lite. Use a printer-supported external route for ordinary 95A TPU, or choose a specifically supported filament such as Bambu TPU for AMS only when its properties match the part.
ASA needs suitable printing conditions
ASA can lift or split when the print is exposed to drafts. Prusa's ASA material guide describes enclosure use; NIOSH provides ventilation guidance for 3D printing emissions. Check the exact printer and filament instructions before using ASA in a shared room.
When to skip adapter hardware or respooling
- Skip respooling a cardboard spool if it measures within the feeder's limits and the manual provides a suitable adapter. Do not assume a transfer is needed before checking the current instructions.
- Skip buying another spool if the one you have fits the published dimensions and follows the feeder's material restrictions.
Setup completion and read-next guides
- Choose a material for its load and environment in the filament-by-job matrix.
- Check the current feeder compatibility lookup for other feeder models and exact filament lines.
- Read the PLA, TPU, and ASA setup guides.
- See filament drying schedules before setting a dryer temperature.
- Compare cardboard and plastic reels in the cardboard spool guide.
- Check a heavy reel in the 3 kg drying and feeding setup.
Common questions
What spool dimensions fit inside a closed Bambu Lab AMS?
Bambu lists 50–68 mm spool width and 197–202 mm outer diameter for its AMS. Measure the exact spool and follow the current AMS manual, including its cardboard-spool guidance.
Why does a spool spin loosely on the Bambu AMS Lite?
The AMS Lite grips the spool hub. Bambu lists a 40–68 mm width and a 53–58 mm inner hub diameter. Measure the exact spool; if its hub does not fit, use an appropriate compatible spool or adapter.
Can I print ASA on a Bambu Lab A1 or A1 mini?
The A1 and A1 mini are open-frame printers. ASA is generally easier to print in an enclosure that limits drafts, and printing it calls for appropriate ventilation. Check the filament maker’s instructions and your printer’s limits before choosing ASA.
